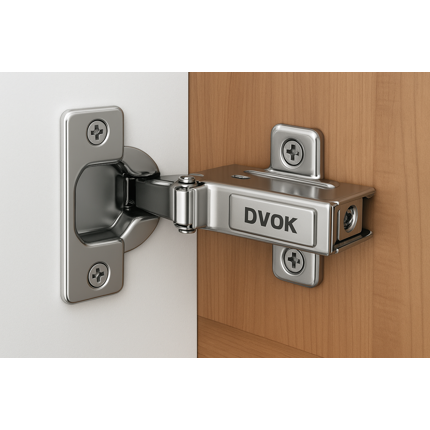

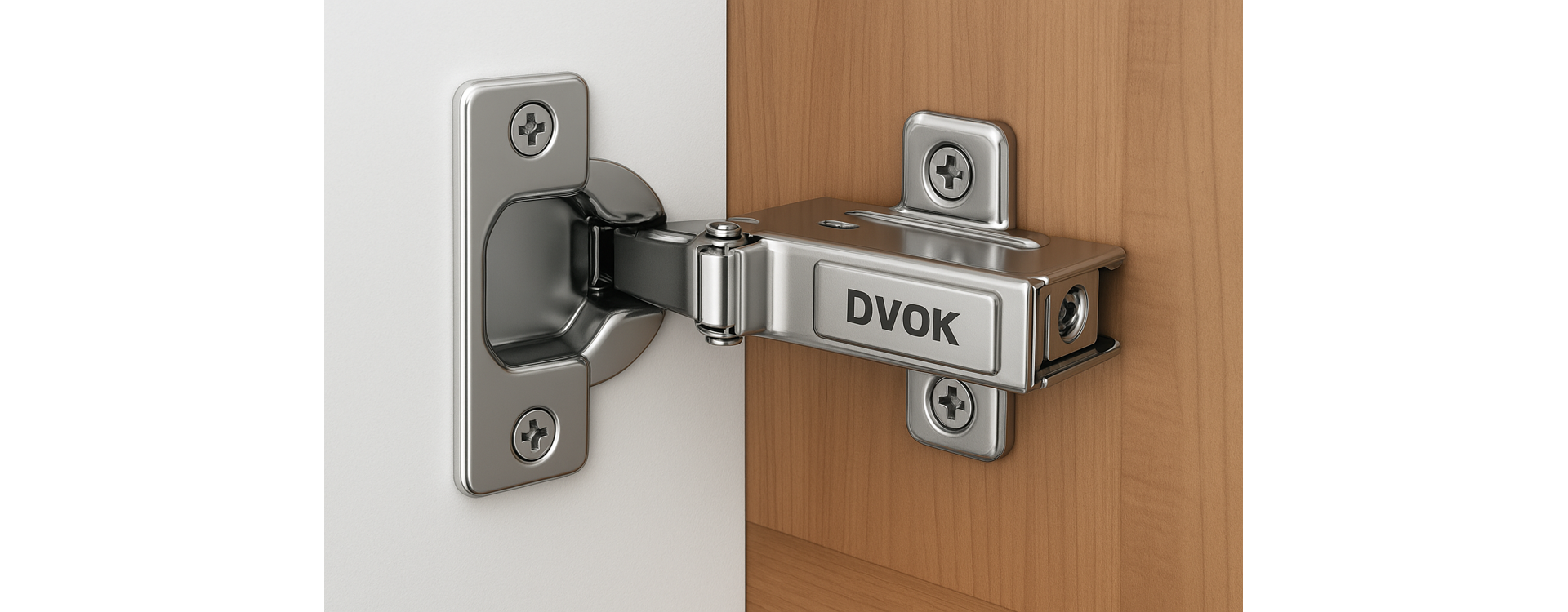

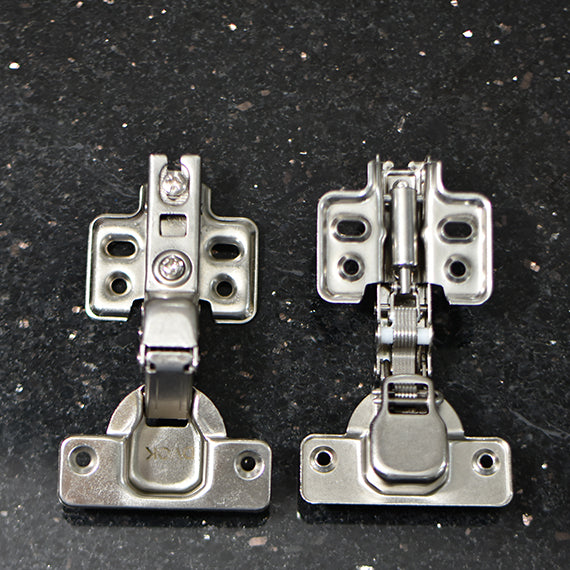

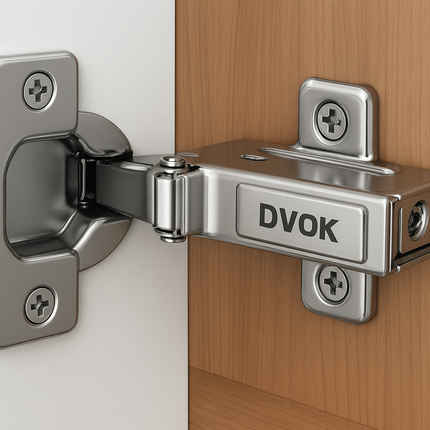

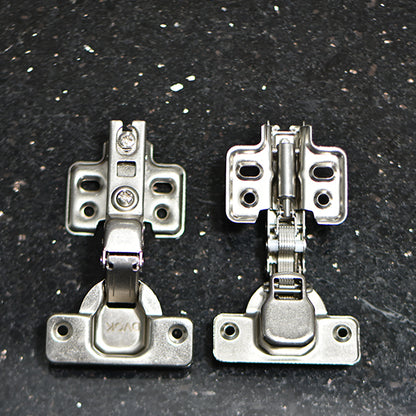

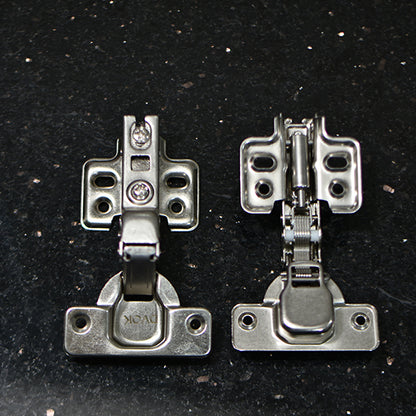

Soft Closing Hinge - without clip

Soft Closing Hinge - without clip

Article No. Description Unit Quantity
DVOKSH1001 DVOK Soft Closing Hinge without Clip -0 crank 2 Nos. per set
DVOKSH1002 DVOK Soft Closing Hinge without Clip -8 crank 2 Nos. per set
DVOKSH1003 DVOK Soft Closing Hinge without Clip -16 crank 2 Nos. per set

Product Specifications

  • Concealed hinge with integrated soft close mechanism.
  • Open Angle: 105 Degree
  • Door thickness range: 14-20 mm
  • Diameter of Hinge cup : 35 mm
  • Depth of Hinge cup: 11.6 mm
  • Cup Drilling Distance: 3-7 mm
  • Max Overlay in 0 Crank : 21 mm
  • Tested and certified for 60,000 cycles
  • Material: Colled rolled steel , Nickel Plated
Request a Call Call for Price
  • Durability
  • Easy to Install
  • Corrosion Resistant
  • Warranty
  • Easy to Incorporate
