Dvok Home Solutions

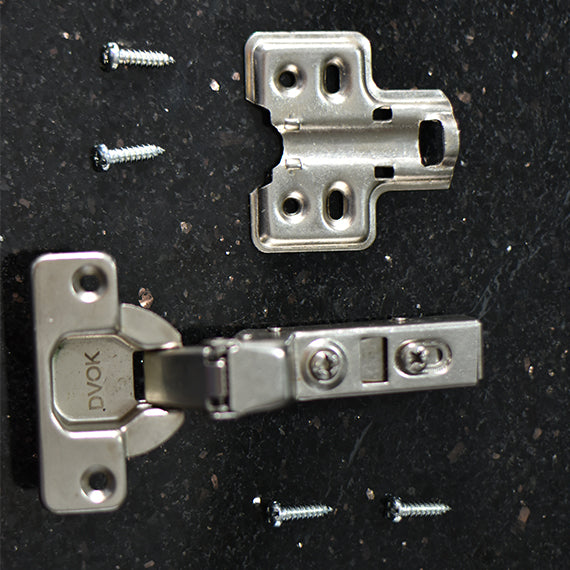

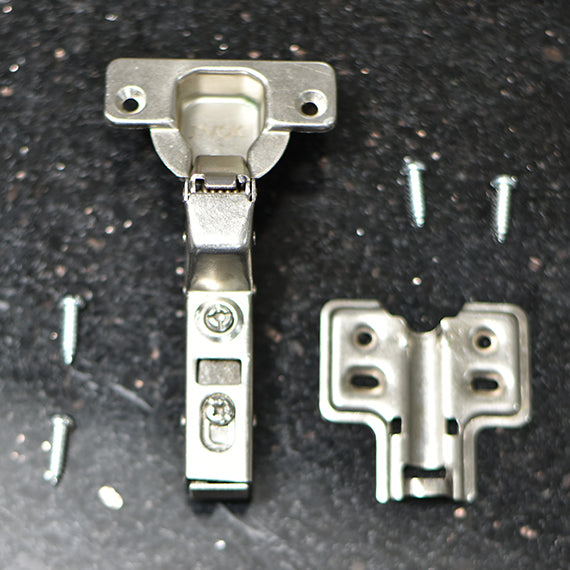

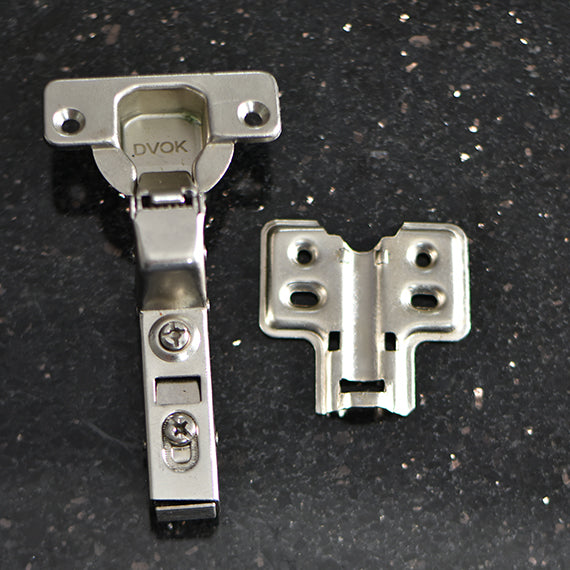

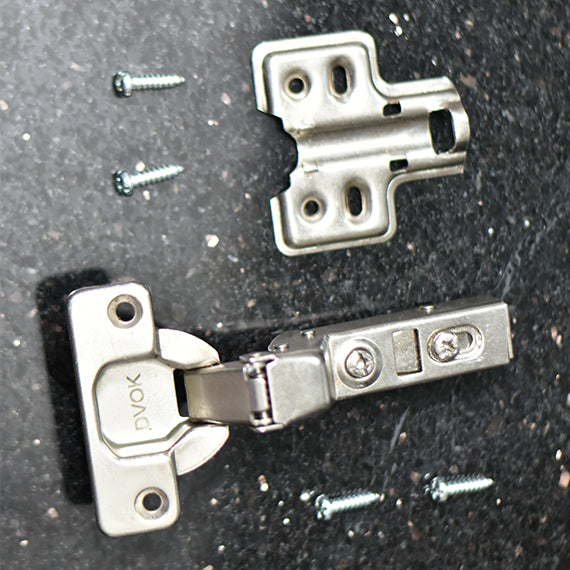

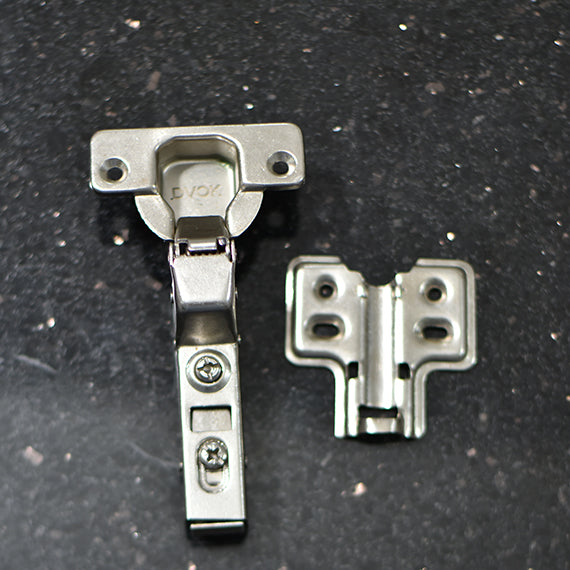

Soft Closing Hinge - with clip
Soft Closing Hinge - with clip
Article No. | Description | Unit Quantity |
---|---|---|
DVOKSHC1001 | DVOK Soft Closing Hinge with Clip -0 crank | 2 Nos. per set |
DVOKSHC1002 | DVOK Soft Closing Hinge with Clip -8 crank | 2 Nos. per set |
DVOKSHC1003 | DVOK Soft Closing Hinge with Clip -16 crank | 2 Nos. per set |
Product Specifications
- Concealed hinge with integrated soft close mechanism.
- Open Angle: 105 Degree
- Door thickness range: 14-20 mm
- Diameter of Hinge cup : 35 mm
- Depth of Hinge cup: 11.6 mm
- Cup Drilling Distance: 3-7 mm
- Max Overlay in 0 Crank : 21 mm
- Tested and certified for 60,000 cycles
- Material: Colled rolled steel , Nickel Plated
Durability
Easy to Install
Corrosion Resistant
